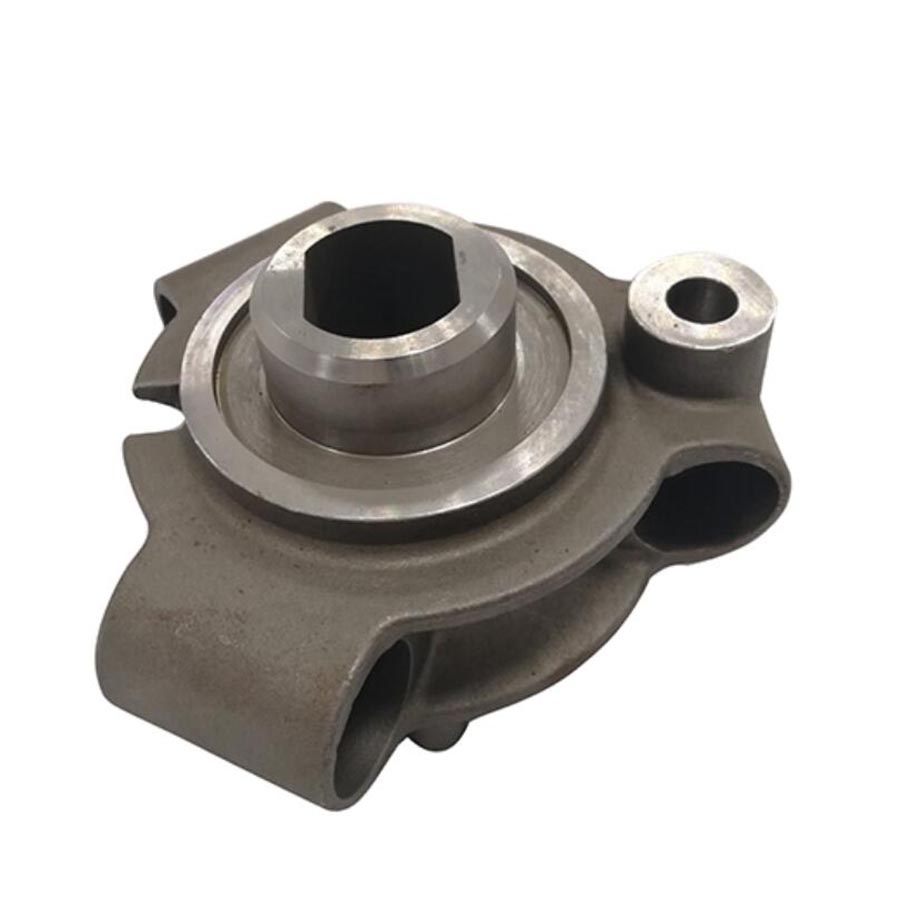

Carbon Steel CNC Precision Machining Parts
Material: Carbon Steel, Alloy Steel Process: Investment Casting + CNC Machining Weight: 4.20 kg
China OEM Customized Carbon Steel CNC Precision Machining Part
OEM Customized CNC Precision Machining Part of Carbon Steel
CNC Precision Machining Capabilities |
|||
| Facilities | Quantity | Size Range (mm) | Annual Capacity |
| Vertical Machining Center (VMC) | 48 sets | 1,500 × 1,000 × 800 | 6,000 tonn or 300,000 pieces |
| Horizontal Machining Center (VMC) | 12 sets | 1,200 × 800 × 600 | 2,000 tons or 100,000 pieces |
| CNC Machine | 60 sets | Max turning φ600 | 5,000 tons or 600,000 pieces |
| Standard of Tolerance: ISO 8062 2013, ISO 2768, GOST 26645 (Russia) or GBT 6414 (China). | |||
Precision machining of steel casting
Precision machining of steel casting is different from machining of steel profile. Precision casting has already achieve quite exact shape of what is desired, thus it saves lots of machining compared with machining from steel profile directly. Also because of this reason, we usually have to consider machining surface and proper machining allowance before casting. Our regular procure is to work out raw casting drawing along with machining drawing to specify machining area and machining allowance on the drawing.
CNC machining is the kind of precision machining by CNC machines such as advanced machining centers which have top end 5 axis machining center, 4 axis double platform machining center, or CNC turning lathes which can also be developed to CNC turning center having capability of changing more than 15 cutters within one holding shift; CNC milling machine and CNC drilling and tapping centers.
RMC investment casting foundry has equipped with 4 axis machining centers, 15 sets of CNC turning lathes and 3 sets of cnc milling machines, along with assistant common versatile turning, milling, tapping, drilling and grinding machines, we have the capability of machining nearly all kinds of steel castings.
• Convertional Machines: 20 sets.
• CNC Machines: 60 sets.
• 3-Axis Machining Center: 10 sets.
• 4-Axis Machining Center: 5 sets.
• 5-Axis Machining Center: 2 sets
▶ Precision Machining Capabilities
• Max Size: 1,500 mm × 800 mm × 500 mm
• Weight Range: 0.1 kg - 500 kg
• Annual Capacity: 10,000 tons
• Accuracy: As per standards: .... or on request. Minimum ±0.003 mm
• Holes to ±0.002 mm dia.
• Flatness, Roundness and Straightness: As per standards or on request.
▶ Available Process
• Turning
• Milling
• Lathing
• Drilling
• Honing, Grinding.
• Washing
▶ Available Ferrous Metal Materials
• Cast Iron including gray iron and ductile iron
• Carbon Steel from low carbon steel, medium carbon steel and high carbon steel.
• Steel Alloys from standard grades to special grades on request.
▶ Available Non-Ferrous Metal Materials
• Aluminum and their alloys
• Brass and Copper
• Zinc and their alloys
• Stainless Steel
▶ General Commerial Terms
• Main workflow: Inquiry & Quotation → Confirming Details / Cost Reduction Proposals → Tooling Development → Trial Casting → Samples Approval → Trial Order → Mass Production → Continuous Order Proceeding
• Leadtime: Estimatedly 15-25 days for tooling development and estimatedly 20 days for mass production.
• Payment Terms: To be negotiated.
• Payment methods: T/T, L/C, West Union, Paypal.
Part of Cast Carbon Steel Grade for Investment Casting |
|||||||||||
| No. | China | Japan | U.S.A. | ISO | Germany | France | Russia гост | Sweden SS | Britain | ||
| GB | JIS | ASTM | UNS | DIN | W-Nr. | NF | BS | ||||
| 1 | ZG200-400 (ZG15) | SC410 (SC42) | 415-205 (60-30) | J03000 | 200-400 | GS-38 | 1.0416 | - | 15л | 1306 | - |
| 2 | ZG230-450 (ZG25) | SC450 (SC46) | 450-240 965-35) | J03101 | 230-450 | GS-45 | 1.0446 | GE230 | 25л | 1305 | A1 |
| 3 | ZG270-500 (ZG35) | SC480 (SC49) | 485-275 (70-40) | J02501 | 270-480 | GS-52 | 1.0552 | GE280 | 35л | 1505 | A2 |
| 4 | ZG310-570 (ZG45) | SCC5 | (80-40) | J05002 | - | GS-60 | 1.0558 | GE320 | 45л | 1606 | - |
| 5 | ZG340-640 (ZG55) | - | - | J05000 | 340-550 | - | - | GE370 | - | - | A5 |
