Cast Alloy Steel Investment Castings

Cast Alloy Steel Investment Castings

Material: Cast Alloy Steel
Process: Investment Casting + CNC Machining
Weight: 13.80 KG
Application: Butterfly Valve Housing

With investment casting, we can offer you precision steel castings with custom and CNC machining services. Look forward to your question or inquiry.

Description

Cast Alloy Steel Investment Castings with OEM Custom and CNC Machining Services in China Foundry

Carbon steel, low alloy steel, and tool steel castings are used in several industrial applications and environments. With their numerous grades, steel and their alloys can be heat-treated to improve its yield and tensile strength; and, adjust hardness or ductility to the engineer's application needs or desired mechanical properties.


Investment Casting Material Capabilities at RMC Foundry

Martensitic Stainless Steel 100 Series: ZG1Cr13, ZG2Cr13 and more
Ferritic stainless steel 200 Series: ZG1Cr17, ZG1Cr19Mo2 and more
Austenitic stainless steel 300 Series: 304, 304L, CF3, CF3M, CF8M, CF8, 1.4304, 1.4401...etc.
Duplex Stainless Steel 400 Series: 1.4460, 1.4462, 1.4468, 1.4469, 1.4517, 1.4770; 2205, 2507
Precipitation Hardening Stainless Steel 500 Series: 17-4PH, 15-5PH, CB7Cu-1; 1.4502
Carbon Steel C20, C25, C30, C45; A216 WCA, A216 WCB,
Low Alloy Steel IC 4140, IC 8620, 16MnCr5, 42CrMo4
Grey Cast Iron & Ductile Cast Iron GG15 ~ GG35; EN-GJL-150 ~ EN-GJL-250; GGG40 ~ GGG80; EN-GJS-400 ~ EN-GJS-800
Super Alloy and Special Alloys Heat Resistant Steel, Wear Resistant Steel, Tool Steel,
Aluminum Alloy A355, A356, A360, A413
Copper Alloy Brass, Bronze. C21000, C23000, C27000, C34500, C37710, C86500, C87600, C87400, C87800, C52100, C51100
RMC can meet material specification acc. to ASTM, SAE, AISI, ACI, DIN, EN, ISO, GB standards.


▶ Ferrous and Non-ferrous Materials for Investment Casting:

  • Gray Iron:  HT150, HT200, HT250, HT300, HT350; GJL-100, GJL-150, GJL-200, GJL-250, GJL-300, GJL-350; GG10~GG40.
  • Ductile Iron (Nodular Iron): GGG40, GGG50, GGG60, GGG70, GGG80; GJS-400-18, GJS-40-15, GJS-450-10, GJS-500-7, GJS-600-3, GJS-700-2, GJS-800-2; QT400-18, QT450-10, QT500-7, QT600-3, QT700-2, QT800-2;
  • Carbon Steel:  AISI 1020  - AISI 1060, C30, C40, C45.
  • Alloy Steel: ZG20SiMn, ZG30SiMn, ZG30CrMo, ZG35CrMo, ZG35SiMn, ZG35CrMnSi, ZG40Mn, ZG40Cr, ZG42Cr, ZG42CrMo...etc on request.
  • Stainless Steel: AISI 304, AISI 304L, AISI 316, AISI 316L, 1.4401, 1.4301, 1.4305, 1.4307, 1.4404, 1.4571 and other stainless steel grade.
  • Brass, Red Copper, Bronze or other Copper-based alloy metals: ZCuZn39Pb3, ZCuZn39Pb2, ZCuZn38Mn2Pb2, ZCuZn40Pb2, ZCuZn16Si4
  • Other Materials as per your unique requirements or according to ASTM, SAE, AISI, ACI, DIN, EN, ISO, and GB standards

▶ Capabilities of Investment Casting Foundry
  • Max Size: 1,000 mm × 800 mm × 500 mm
  • Weight Range: 0.5 kg - 100 kg
  • Annual Capacity: 2,000 tons
  • Bond Materials for Shell Building: Silica Sol, Water Glass and their mixtures.
  • Tolerances: On Request.

▶ Main Production Procedure

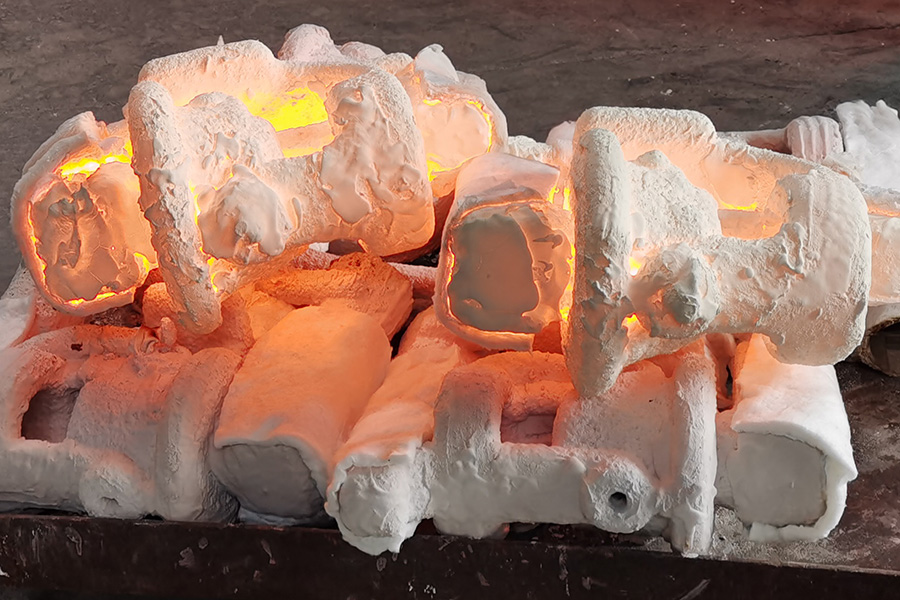

  • Patterns & Tooling Design → Metal Die Making → Wax Injection → Slurry Assembly → Shell Building → De-Waxing  → Chemical Composition Analysis → Melting & Pouring → Cleaning, Grinding & Shot Blasting → Post Processing or Packing for Shipment

▶ Post-Casting Process
  • Deburring & Cleaning
  • Shot Blasting / Sand Peening
  • Heat Treatment: Normalization, Quench, Tempering, Carburization, Nitriding
  • Surface Treatment: Passivation, Anodizing, Electroplating, Hot Zinc Plating, Zinc Plating, Nickel Plating, Polishing, Electro-Polishing, Painting, GeoMet, Zintec.
  • Machining: Turning, Milling, Lathing, Drilling, Honing, Grinding.

▶ Advantages of Investment Casting Components:
  • Excellent and smooth surface finish
  • Tight dimensional tolerances.
  • Complex and intricate shapes with design flexibility
  • Capability to cast thin walls therefore a lighter casting component
  • Wide selection of cast metals and alloys (ferrous and non-ferrous)
  • Draft is not required in the molds design.
  • Reduce the need for secondary machining.
  • Low material waste.



Investment Casting Technical Data at RMC Foundry

R & D Software: Solidworks, CAD, Procast, Pro-e
Lead Time for Development and Samples: 25 to 35 days
Molten Metal Ferritic Stainless Steel, Martensitic Stainless Steel, Austenitic stainless steel, Precipitation Hardening Stainless Steel, Duplex Stainless Steel
Carbon Steel, Alloy Steel, Tool Steel, Heat Resistant Steel,
Nickle-base Alloy, Aluminium Alloy, Copper-base Alloy, Cobalt-base Alloy
Metal Standard ISO, GB, ASTM, SAE, GOST EN, DIN, JIS, BS
Material for Shell Building Silica Sol (Precipitated Silica )
Water Glass (Sodium Silicate)
Mixtures of Silica Sol and Water Glass
Technical Parameter Piece Weight: 2 gram to 200 kilo gram
Max Dimension: 1,000 mm for Diameter or Length
Min Wall Thickness: 1.5mm
Casting Roughness: Ra 3.2-6.4, Machining Roughness: Ra 1.6
Tolerance of Casting: ISO8062; VDG P690, D1/CT5-7
Tolerance of Machining: ISO 2768-mk/IT6
Inner Core: Ceramic Core, Urea Core, Water Soluble Wax Core
Heat Treatment Normalizing, Tempering, Quenching, Annealing, Solid Solution, Carburization.
Surface Treatment Polishing, Sand / Shot Blasting, Zinc Plating, Nickel Plating, Oxidation Treatment, Phosphating, Powder Painting, Geormet, Anodizing
Dimension Testing CMM, Vernier Caliper, Inside Caliper. Depth Gauge, Height Gauge, Go/No go Gauge, Special Fixtures
Chemical Inspection Chemical Compostion Analysis (20 chemical elements), Cleanliness Inspection, X-ray Radiographic Inspection, Carbon-Sulfur Analyser. 3.1 Material Certificate is Available
Physical Inspection Dynamic Balancing, Static Blancing, Mechanical Properties (Hardness, Yield Strength, Tensile Strength), Elongation
Production Capacity More than 250 tons per month, more than 3,000 tons annually.


Precision Cast Alloy Steel Investment Casting Parts
RMC manufactures precision investment cast metal parts that consistently meet or exceed customer expectations. Lost wax investment casting allows us to produce metal parts as small as tens of grams and as large as tens of kilograms, in a wide range of ferrous and non-ferrous alloys and with exceptional dimensional accuracy.

The lost wax casting process produces near-net-shape precision metal parts that often require little or no additional machining. The resulting finish is also much better than what is achievable through other processes. The strength and durability of the casting parts make themselves ideal for high wear-resistance applications requiring millions of cycles.

stainless steel casting manufacturer

RMC Investment Casting Foundry offers
  • Valve and Pipeline Castings
  • Manifolds Castings
  • Hydaulic Castings
  • Precision Medical castings
  • Truck Castings
  • Loctomotive Castings
  • Railway Trains castings

Whether we're casting small metal parts in carbon steel or large, intricate shapes in specialty non-ferrous alloys, RMC can deliver precision metal cast parts that perfectly match your designs and usage. We offer design assistance, as needed, to help improve both your part's function and its manufacturability. From the simplest shape to the most complex geometry, we can turn your designs into reality.
