Material: Brass Process: Investment Casting Weight: 4.10 kg

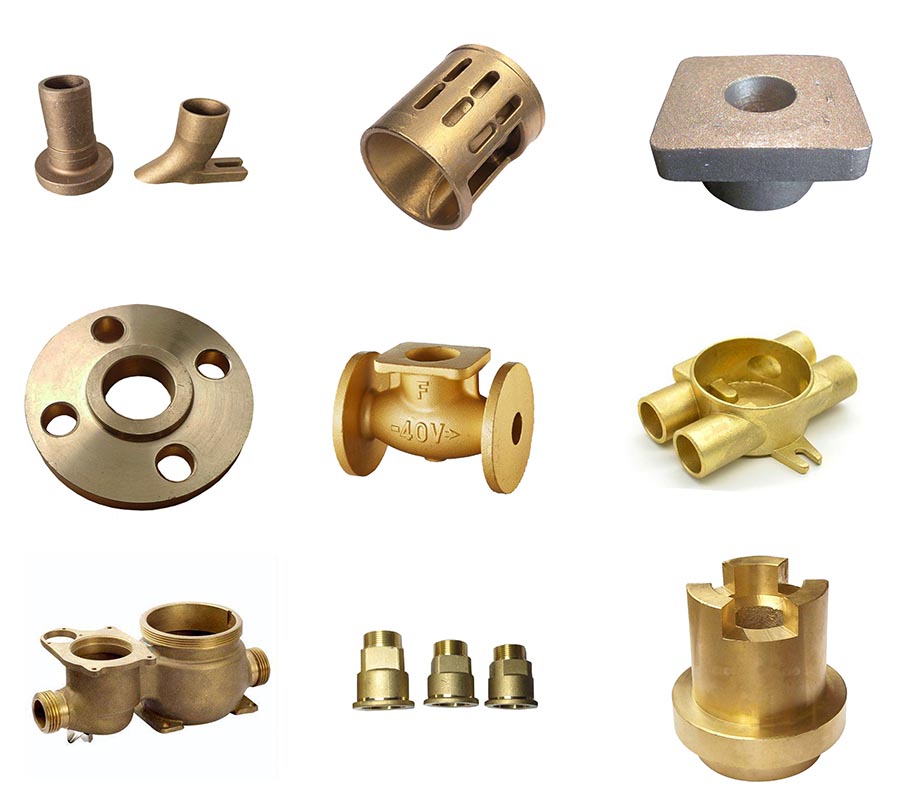

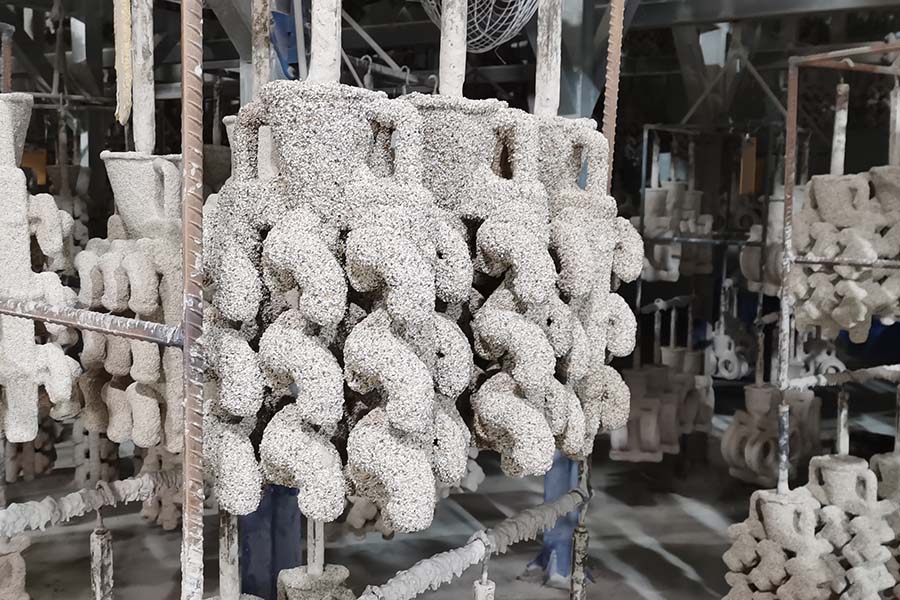

Brass Investment Casting in China foundry with CNC machining services. Bronze and other copper-based alloys are also available for lost wax investment casting
Brass is an alloy composed of copper and zinc. Brass composed of copper and zinc is called ordinary brass. If it is a variety of alloys composed of more than two elements, it is called special brass. Brass is a copper alloy with zinc as the main element. As the zinc content increases, the strength and plasticity of the alloy increase significantly, but the mechanical properties will decrease significantly after exceeding 47%, so the zinc content of brass is less than 47%. In addition to zinc, cast brass often contains alloying elements such as silicon, manganese, aluminum, and lead.
General Casting Tolerance by Investment Casting |
|||
Inches | Millimeters | ||
Dimension | Tolerance | Dimension | Tolerance |
Up to 0.500 | ±.004" | Up to 12.0 | ± 0.10mm |
0.500 to 1.000” | ±.006" | 12.0 to 25.0 | ± 0.15mm |
1.000 to 1.500” | ±.008" | 25.0 to 37.0 | ± 0.20mm |
1.500 to 2.000” | ±.010" | 37.0 to 50.0 | ± 0.25mm |
2.000 to 2.500” | ±.012" | 50.0 to 62.0 | ± 0.30mm |
2.500 to 3.500” | ±.014" | 62.0 to 87.0 | ± 0.35mm |
3.500 to 5.000” | ±.017" | 87.0 to 125.0 | ± 0.40mm |
5.000 to 7.500” | ±.020" | 125.0 to190.0 | ± 0.50mm |
7.500 to 10.000” | ±.022" | 190.0 to 250.0 | ± 0.57mm |
10.000 to 12.500” | ±.025" | 250.0 to 312.0 | ± 0.60mm |
12.500 to 15.000 | ±.028" | 312.0 to 375.0 | ± 0.70mm |
Excutive Standard of Casting Tolerance: ISO 8062 2013, ISO 2768, GOST 26645 (Russia) or GBT 6414 (China). Dimensional Casting Tolerances Grade (DCTG): 4 ~6 and Geometrical Casting Tolerances Grade (GCTG): 3 ~ 5. |
Casting brass has higher mechanical properties than bronze, but the price is lower than bronze. Cast brass is often used for general purpose bearing bushes, bushings, gears and other wear-resistant parts and valves and other corrosion-resistant parts. Brass has strong wear resistance. Brass is often used to make valves, water pipes, connecting pipes for internal and external air conditioners, and radiators.
Equivalent Grade of Brass and Bronze |
|||||||
China | Germany | Europe | International | USA | Japan | ||
GB | DIN | EN | ISO | UNS | JIS | ||
Symbol | No. | Symbol | No. | Symbol | No. | No. | |
TU2 | OF-Cu | 2.004 | Cu-OFE | CW009A | Cu-OF | C10100 | C1011 |
- | SE-Cu | 2.007 | Cu-HCP | CW021A | - | C10300 | - |
- | SE-Cu | 2.007 | Cu-PHC | CW020A | - | C10300 | - |
T2 | E-Cu58 | 2.0065 | Cu-ETP | CW004A | Cu-ETP | C11000 | C1100 |
TP2 | SF-Cu | 2.009 | Cu-DHP | CW024A | Cu-DHP | C12200 | C1220 |
- | SF-Cu | 2.009 | Cu-DHP | CW024A | Cu-DHP | C12200 | C1220 |
- | SF-Cu | 2.009 | Cu-DHP | CW024A | Cu-DLP | C12200 | C1220 |
TP1 | SW-Cu | 2.0076 | Cu-DLP | CW023A | Cu-DLP | C12000 | C1201 |
H96 | CuZn5 | 2.022 | CuZn5 | CE500L | CuZn5 | C21000 | C2100 |
H90 | CuZn10 | 2.023 | CuZn10 | CW501L | CuZn10 | C22000 | C2200 |
H85 | CuZn15 | 2.024 | CuZn15 | CW502L | CuZn15 | C23000 | C2300 |
H80 | CuZn20 | 2.025 | CuZn20 | CW503L | CuZn20 | C24000 | C2400 |
CuZn28 | |||||||
H70 | CuZn30 | 2.0265 | CuZn30 | CW505L | CuZn30 | C26000 | C2600 |
H68 | CuZn33 | 2.028 | CuZn33 | CW506L | CuZn35 | C26800 | C2680 |
H65 | CuZn36 | 2.0335 | CuZn36 | CW507L | CuZn35 | C27000 | C2700 |
H63 | CuZn37 | 2.0321 | CuZn37 | CW508L | CuZn37 | C27200 | C2720 |
HPb63-3 | CuZn36Pb1.5 | 2.0331 | CuZn35Pb1 | CW600N | CuZn35Pb1 | C34000 | C3501 |
HPb63-3 | CuZn36Pb1.5 | 2.0331 | CuZn35Pb2 | CW601N | CuZn34Pb2 | C34200 | - |
H62 | CuZn40 | 2.036 | CuZn40 | CW509N | CuZn40 | C28000 | C3712 |
H60 | CuZn38Pb1.5 | 2.0371 | CuZn38Pb2 | CW608N | CuZn37Pb2 | C35000 | - |
HPb63-3 | CuZn36Pb3 | 2.0375 | CuZn36Pb3 | CW603N | CuZn36Pb3 | C36000 | C3601 |
HPb59-1 | CuZn39Pb2 | 2.038 | CuZn39Pb2 | CW612N | CuZn38Pb2 | C37700 | C3771 |
HPb58-2.5 | CuZn39Pb3 | 2.0401 | CuZn39Pb3 | CW614N | CuZn39Pb3 | C38500 | C3603 |
- | CuZn40Pb2 | 2.0402 | CuZn40Pb2 | CW617N | CuZn40Pb2 | C38000 | C3771 |
- | CuZn28Sn1 | 2.047 | CuZn28Sn1As | CW706R | CuZn28Sn1 | C68800 | C4430 |
- | CuZn31Si1 | 2.049 | CuZn31Si1 | CW708R | CuZn31Si1 | C44300 | - |
- | CuZn20Al2 | 2.046 | CuZn20Al2As | CW702R | CuZn20Al2 | C68700 | C6870 |
QSn4-0.3 | CuSn4 | 2.1016 | CuSn4 | CW450K | CuSn4 | C51100 | C5111 |
- | CuSn5 | 2.1018 | CuSn5 | CW451K | CuSn5 | C51000 | C5102 |
QSn6.5-0.1 | CuSn6 | 2.102 | CuSn6 | CW452K | CuSn6 | C51900 | C5191 |
QSn6.5-0.4 | CuSn6 | CuSn6 | C51900 | C5191 | |||
QSn7-0.2 | CuSn8 | CuSn8 | C52100 | C5210 | |||
QSn8-0.3 | CuSn8 | 2.103 | CuSn8 | CW453K | CuSn8 | C52100 | C5210 |
BZn12-24 | CuNi12Zn24 | 2.073 | CuNi12Zn24 | CW403J | CuNi12Zn24 | C75700 | - |
BZn12-26 | CuNi18Zn27 | 2.0742 | CuNi18Zn27 | CW410J | CuNi18Zn27 | C77000 | C7701 |
BZn18-18 | CuNi18Zn20 | 2.074 | CuNi18Zn20 | CW409J | CuNi18Zn20 | C76400 | C7521 |
- | CuNi10Fe1Mn | 2.0872 | CuNi10Fe1Mn | CW352H | CuNi10Fe1Mn | C70600 | C7060 |
- | CuNi30Mn1Fe | 2.882 | CuNi30Mn1Fe | CW354H | CuNi30Mn1Fe | C71500 | C7150 |
T3 | Cu-FRTP | C12500 | |||||
TAg0.1 | CuAg0.1 | CuAg0.1 | |||||
HPb63-0.1 | CuZn37Pb0.5 | ||||||
HPb61-1 | CuZn39Pb0.5 | C37100 | C3710 | ||||
HAl77-2 | CuZn20Al2 | CuZn20Al2 | C68700 | C6870 | |||
HSn70-1 | CuZn28Sn1 | CuZn28Sn1 | C44300 | C4430 | |||
HSn62-1 | CuZn38Sn1 | CuZn38Sn1 | C46400 | C4620 | |||
HMn58-2 | CuZn40Mn2 | ||||||
QAl5 | CuAl5As | CuAl5 | |||||
QAl7 | CuAl8 | CuAl7 | C61000 | ||||
QAl9-2 | CuAl9Mn2 | CuAl9Mn2 | |||||
QAl10-3-1.5 | CuAl10Fe3Mn2 | C63200 | |||||
QAl10-4-4 | CuAl10Ni5Fe4 | CuAl10Ni5Fe5 | C63020 | ||||
QAl11-6-6 | CuAl11Ni6Fe5 | ||||||
QBe2 | CuBe2 | CuBe2 | C17200 | C1720 | |||
QBe1.7 | CuBe1.7 | CuBe1.7 | C17000 | C1700 | |||
QZr0.2 | CuZr | C15000 | |||||
QCd1 | CuCrZr | CuCd1 | C16200 | ||||
QMg0.8 | CuMg0.7 | ||||||
ZQSnD5-5-5 | GB-CuSn5ZnPb | GCuPb5Sn5Zn | C83600 | BCln6 | |||
ZQSnD10-1 | GB-CuSn10 | GCuSn10P | |||||
ZQSnD10-2 | GB-CuSn10Zn | GCuSn10Zn2 | BCln3 | ||||
ZQAlD9-4-4-2 | GB-CuAl10Ni | GCuAl10Fe5Ni5 | C95800 | AlBCln3 | |||
ZQAlD9-4 | GB-CuAl10Fe | GCuAl10Fe3 | C95200 | AlBCln1 |
