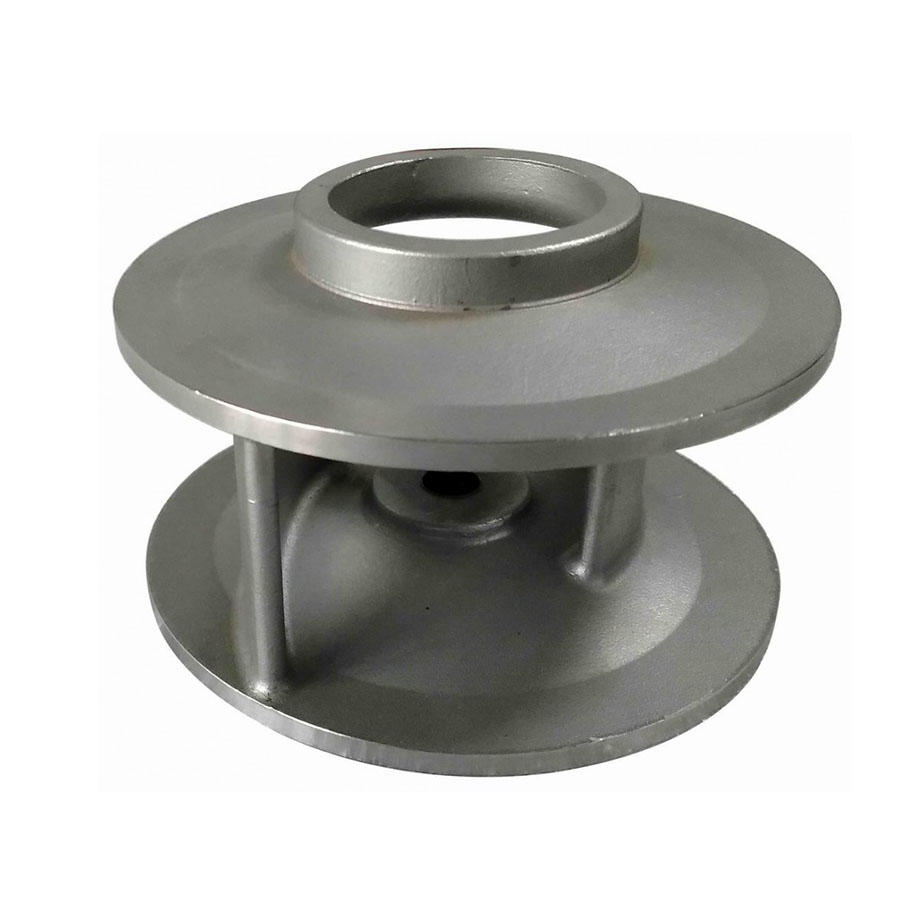

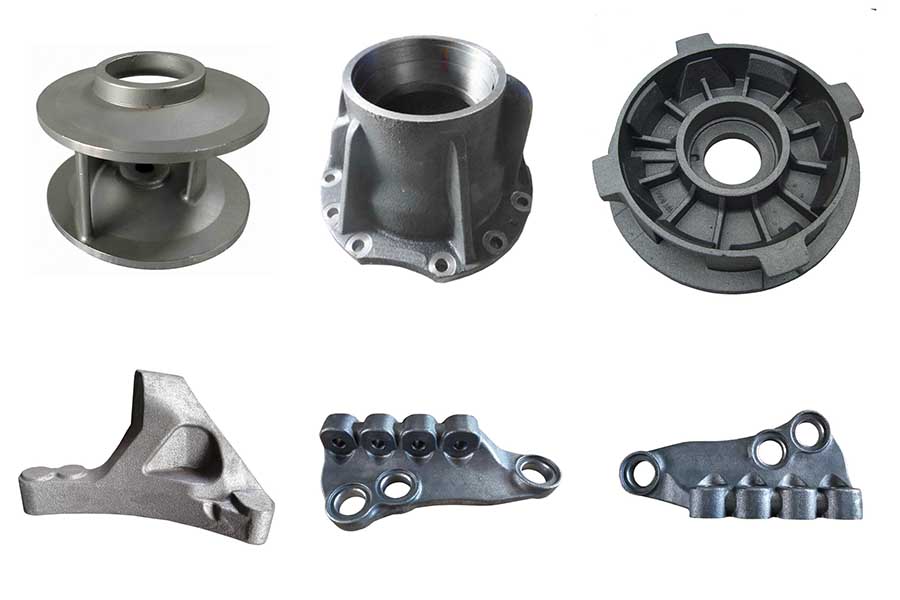

Custom Ductile Cast Iron Product

Material: Ductile (Nodualr, Spheroidal Graphite) Cast Iron
Process: Sand Casting + CNC Machining
Weight: 5.56 kg

China Custom Ductile Cast Iron Products with Sand Casting Service and Machining Service

Request a Quote Send Email

Description

China Custom Ductile (Nodular, Spheroidal Graphite) Cast Iron Products by Sand Casting and Machining

Mechanical Properties of Ductile (Nodular) Cast Iron
Item according to DIN EN 1563	Measure Unit	EN-GJS-350-22-LT	EN-GJS-400-18-LT	EN-GJS-400-18	EN-GJS-500-7	EN-GJS-600-3	EN-GJS-700-2	EN-GJS-800-2
Item according to DIN EN 1563	Measure Unit	EN-JS 1015	EN-JS 1025	EN-JS 1020	EN-JS 1050	EN-JS 1060	EN-JS 1070	EN-JS 1080
Tensile Strength	Rm min.MPA	350	400	400	500	600	700	800
2% Yield Strength	Rp0.2 min.MPA	220	240	250	320	370	420 2)	480 2)
Elongation	A %	22,0	18,0	18,0	7,0	3,0	2,0	2,0
Hardness	HB	110-150	120-160	140-190	170-220	200-250	230-280	250-330
Structures		mainly ferritic	mainly ferritic	mainly ferritic	ferritic + pearlite	ferritic + pearlite	mainly pearlite	all pearlite
Shear Stress	σaB MPa	315	360	360	450	540	630	720
Torsion	TtB MPa	315	360	360	450	540	630	720
Modules of elasticity	E GPa	170	170	170	175	175	175	175
Poisson number	v –	0,280	0,280	0,280	0,280	0,280	0,280	0,280
Compressive Strength	σdB MPa	–	700	700	800	870	1000	1150
Frature Toughness	Klc MPa ·√m	31	30	30	25	20	15	14
Density	g/cm3	7,1	7,1	7,1	7,1	7,2	7,2	7,2

Cast iron components are generally produced by green sand casting and shell moulding casting. Which one should be chose in real production depends on the budget and exact requirements from the end-users or usage.

▶ Casting Process of Cast Iron:

Green Sand Casting Process. The green sand is basically a wet mixture of sand and clay, no chemical is added. The sand mold is squeezed together and holds its shape. The choice of sand has a lot to do with the temperature at which the metal is poured. At the temperatures that cast iron are poured, the clay gets inactivated by the heat, which is a non-expanding clay. So instead, those that pour cast iron typically work with silica sand that is inexpensive compared to the other sands. Cast iron sand castings have many advantages such as low costs, complex design, high effeciency, and good quality. Sand casting process is a suitable and good choice for iron casting parts unless the special or very high requirements have to be matched.

Shell Moulding Casting Process. Shell mold casting process offers better surface finish, better dimensional tolerances, and higher throughput due to reduced cycle times. The materials that can be used with this process are cast irons, and aluminum and copper alloys. The shell molding process produces cost savings solutions for difficult shapes, pressure vessels, weight sensitive parts, and castings requiring superior surface finishes.

▶ Raw Materials of Cast Iron as per standard or customized chemical compositions and mechanical properties.
• Gray Iron: HT150, HT200, HT250, HT300, HT350; GJL-100, GJL-150, GJL-200, GJL-250, GJL-300, GJL-350; GG10~GG40.
• Ductile Iron or Nodular Iron: GGG40, GGG50, GGG60, GGG70, GGG80; GJS-400-18, GJS-40-15, GJS-450-10, GJS-500-7, GJS-600-3, GJS-700-2, GJS-800-2; QT400-18, QT450-10, QT500-7, QT600-3, QT700-2, QT800-2.

▶ Capabilities of Cast Iron Green Sand Casting Components
✔ By handle mould:
• Max Size: 1,500 mm × 1000 mm × 500 mm
• Weight Range: 0.5 kg - 500 kg
• Annual Capacity: 5,000 tons - 6,000 tons
• Tolerances: On Request.
✔ By Automatic Molding Machines:
• Max Size: 1,000 mm × 800 mm × 500 mm
• Weight Range: 0.5 kg - 500 kg
• Annual Capacity: 8,000 tons - 10,000 tons
• Tolerances: On Request.

▶ Capabilities of Cast Iron Shell Molding Casting Components
• Max Size: 800 mm × 600 mm × 500 mm
• Weight Range: 0.5 kg - 300 kg
• Annual Capacity: 5,000 tons - 8,000 tons
• Tolerances: On Request.

▶ How We Inspect the Cast Iron Components:
• Spectrographic and manual quantitative analysis
• Metallographic analysis
• Brinell, Rockwell and Vickers hardness inspection
• Mechanical property analysis
• Low and normal temperature impact testing
• Cleanliness inspection
• UT, MT and RT inspection

▶ Post-Casting Process
• Deburring & Cleaning
• Shot Blasting / Sand Peening
• Heat Treatment: Normalization, Quench, Tempering, Carburization, Nitriding
• Surface Treatment: Passivation, Anodizing, Electroplating, Hot Zinc Plating, Zinc Plating, Nickel Plating, Polishing, Electro-Polishing, Painting, GeoMet, Zintec
• Machining: Turning, Milling, Lathing, Drilling, Honing, Grinding,

▶ Advantages of Cast Iron by Sand Casting or Shell Molding Casting
• Low Cost due to its cheap and recyclable mold materials and simple production equipment.
• Wide range of unit weight from 0.10 kg to 500 kgs or even bigger.
• Various Structure from simple type to complex type.
• Suitable for production requirements of various quantity.
