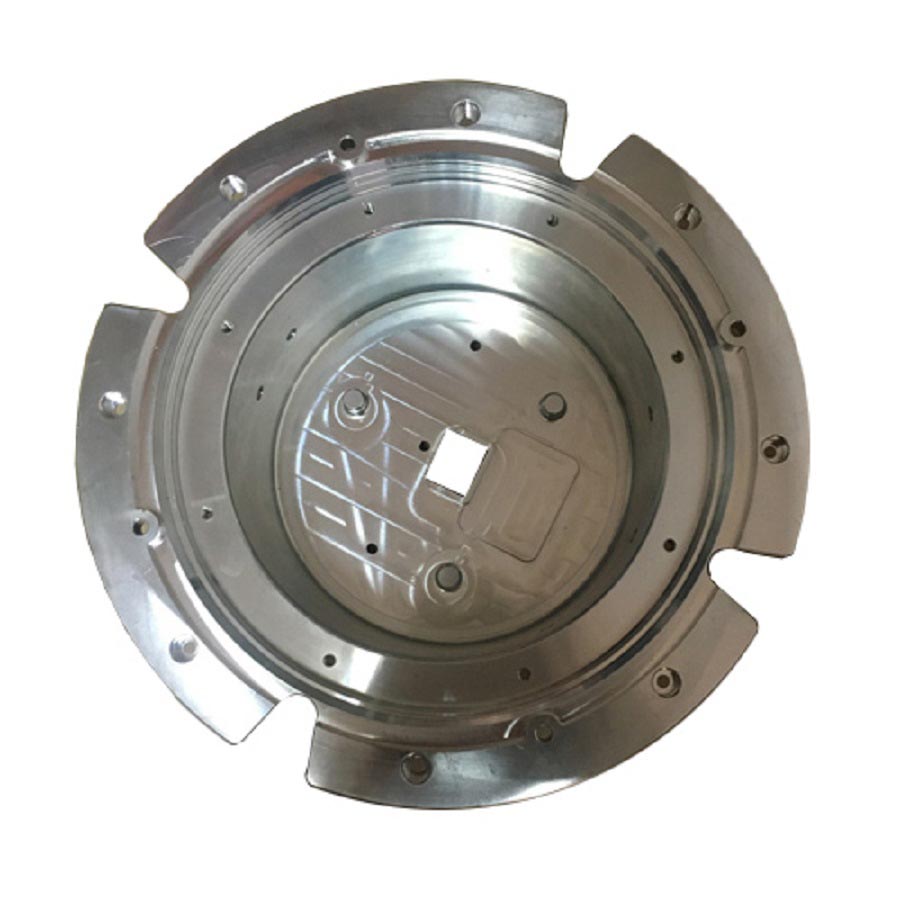

China OEM Machining Stainless Steel Part

China OEM Machining Stainless Steel Part

Material: Stainless Steel 304 / 316
Process: CNC Precision Machining
Weight: 12.86 kg

AISI 304 Stainless Steel, AISI 316 Stainless Steel Machining Services from China

Description

China Machining Stainless Steel Parts Manufacturer

Machining is a process in which a material (often metal) is cut into a desired final shape and size by a controlled material-removal process. The processes that have this common theme, controlled material removal, are today collectively known as subtractive manufacturing,[1] in distinction from processes of controlled material addition, which are known as additive manufacturing. Exactly what the "controlled" part of the definition implies can vary, but it almost always implies the use of machine tools (in addition to just power tools and hand tools).


Equivalent Grade of Stainless Steel

Categories AISI W-stoff DIN BS SS U.N.E. / I.H.A. UNI
Martensitic and Ferritic Stainless Steel 420 C 1.4034 X43Cr16
440 B/1 1.4112 X90 Cr Mo V18
- 1.2083 X42 Cr 13 - 2314 F.5263 -
403 1.4000 X6Cr13 403 S 17 2301 F.3110 X6Cr13
(410S) 1.4001 X7 Cr 14 (403 S17) 2301 F.3110 X6Cr13
405 1.4002 X6 CrAl 13 405 S 17 - F.3111 X6 CrAl 13
416 1.4005 X12 CrS 13 416 S 21 2380 F.3411 X12CrS13
410 1.4006 X 10 Cr 13 410 S21 2302 F.3401 X12Cr13
430 1.4016 X6 Cr 17 430 S 17 2320 F.3113 X8Cr17
420 1.4021 X20 Cr 13 420 S 37 2303 F.3402 X20Cr13
420F 1.4028 X30 Cr 13 420 S 45 (2304) F.3403 X30Cr13
(420) 1.4031 X39Cr13 420 S 45 (2304) F.3404 -
431 1.4057 X20 CrNi 17 2 431 S 29 2321 F.3427 X16CrNi16
430F 1.4104 X12 CrMoS 17 - 2383 F.3117 X10CrS17
434 1.4113 X6 CrMo 17 434 S 17 2325 - X8CrMo17
430Ti 1.4510 X6 CrTi 17 - - - X6CrTi17
409 1.4512 X5 CrTi 12 409 S 17 - - X6CrTi12
Austenitic Stainless Steel 304 1.4301 X5 CrNi 18 9 304 S 15 2332 F.3551 X5CrNi18 10
305 1.4303 X5 CrNi 18 12 305 S 19 - - X8CrNi19 10
303 1.4305 X12 CrNiS 18 8 303 S 21 2346 F.3508 X10CrNiS 18 09
304L 1.4306 X2 CrNiS 18 9 304 S 12 2352 F.3503 X2CrNi18 11
301 1.4310 X12 CrNi 17 7 - 2331 F.3517 X12CrNi17 07
304 1.4350 X5 CrNi 18 9 304 S 31 2332 F.3551 X5CrNi18 10
304 1.4350 X5 CrNi 18 9 304 S 31 2333 F.3551 X5CrNi18 10
304LN 1.4311 X2 CrNiN 18 10 304 S 62 2371 - -
316 1.4401 X5 CrNiMo 18 10 316 S 16 2347 F.3543 X5CrNiMo17 12
316L 1.4404 - 316 S 12/13/14/22/24 2348 X2CrNiMo17 12
316LN 1.4429 X2 CrNiMoN 18 13 - 2375 - -
316L 1.4435 X2 CrNiMo 18 12 316 S 12/13/14/22/24 2353 - X2CrNiMo17 12
316 1.4436 - 316 S 33 2343 - X8CrNiMo 17 13
317L 1.4438 X2 CrNiMo 18 16 317 S 12 2367 - X2CrNiMo18 16
329 1.4460 X3 CrNiMoN 27 5 2 - 2324 F.3309 -
321 1.4541 X10 CrNiTi 18 9 321 S 12 2337 F.3553 X6CrNiTi18 11
347 1.4550 X10 CrNiNb 18 9 347 S 17 2338 F.3552 X6CrNiNb18 11
316Ti 1.4571 X10 CrNiMoTi 18 10 320 S 17 2350 F.3535 X6CrNiMoTi 17 12
309 1.4828 X15 CrNiSi 20 12 309 S 24 - - X16 CrNi 24 14
330 1.4864 X12 NiCrSi 36 16 - - - -
Duplex Stainless Steel S32750 1.4410 X 2 CrNiMoN 25 7 4 - 2328 - -
S31500 1.4417 X 2 CrNiMoSi 19 5 - 2376 - -
S31803 1.4462 X 2 CrNiMoN 22 5 3 - 2377 - -
S32760 1.4501 X 3 CrNiMoN 25 7 - - - -
630 1.4542 X5CrNiCNb16-4 - - - -
A564/630 - - - - - -

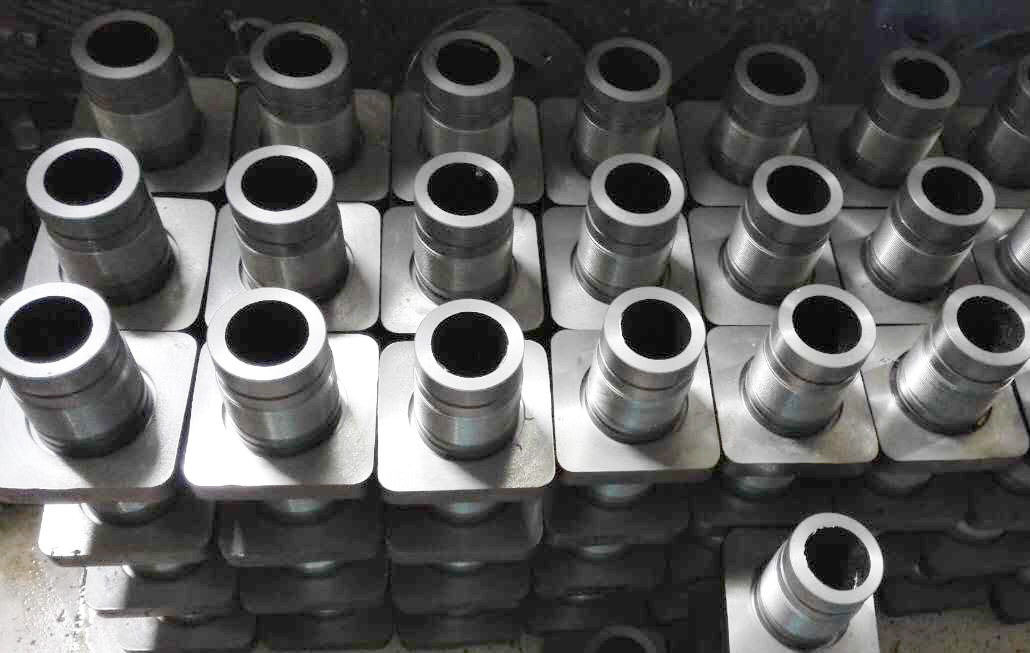

CNC Machining Parts


▶ Equipment for Precision Machining
• Convertional Machines:  20 sets.
• CNC Machines: 60 sets.
• 3-Axis Machining Center: 10 sets.
• 4-Axis Machining Center: 5 sets.
• 5-Axis Machining Center: 2 sets

▶ Precision Machining Capabilities
• Max Size: 1,500 mm × 800 mm × 500 mm
• Weight Range: 0.1 kg - 500 kg
• Annual Capacity: 10,000 tons
• Accuracy: As per standards: .... or on request. Minimum ±0.003 mm
• Holes to ±0.002 mm dia.
• Flatness, Roundness and Straightness: As per standards or on request.

▶ Available Ferrous Metal Materials
• Cast Iron including gray iron and ductile iron
• Carbon Steel from low carbon steel, medium carbon steel and high carbon steel.
• Steel Alloys from standard grades to special grades on request.

▶ Available Non-Ferrous Metal Materials
• Aluminum and their alloys
• Brass and Copper
• Zinc and their alloys
• Stainless Steel

▶ General Commerial Terms
• Main workflow: Inquiry & Quotation → Confirming Details / Cost Reduction Proposals → Tooling Development → Trial Casting → Samples Approval → Trial Order → Mass Production → Continuous Order Proceeding
• Leadtime: Estimatedly 15-25 days for tooling development and estimatedly 20 days for mass production.
• Payment Terms: To be negotiated.
• Payment methods: T/T, L/C, West Union, Paypal.


Precision Machining Processes

The Machining processes are Turing, Facing, Boring, Milling, Drilling, Planning, Shaping, Grooving, Face Grinding, Cylindrical Grinding, Honing, Gear Hobbing, Threading, Lapping, Tapping.


CNC Precision Machining Capabilities
Facilities Quantity Size Range (mm) Annual Capacity
Vertical Machining Center (VMC) 48 sets 1,500 × 1,000 × 800 6,000 tonn or 300,000 pieces
Horizontal Machining Center (VMC) 12 sets 1,200 × 800 × 600 2,000 tons or 100,000 pieces
CNC Machine 60 sets Max turning φ600 5,000 tons or 600,000 pieces
Standard of Tolerance: ISO 8062 2013, ISO 2768, GOST 26645 (Russia) or GBT 6414 (China).
