Custom Brass Sand Casting Part

Custom Brass Sand Casting Part

Material: Brass, Bronze and other Copper Alloys
Process: Sand Casting
Weight: 6.20 kg
Application: Machinery Parts

Brass and Bronze Sand Casting with CNC Precision Machining and Heat Treatment Services from China Sand Casting Foundry.

Description

Custom Brass Sand Casting Part


Brass is a kind of copper alloy with zinc as the main alloying element. Copper-zinc binary alloy is called ordinary brass, and ternary, quaternary or multi-element brass formed by adding a small amount of other elements on the basis of copper-zinc alloy is called special brass. Cast brass is used to produce brass for castings. Brass castings are widely used in machinery manufacturing, ships, aviation, automobiles, construction and other industrial sectors, occupying a certain weight in heavy non-ferrous metal materials, forming cast brass series.


Sand Casting Capabilities at RMC Foundry

Description Molding by hand Molding by Automatic Machines
Max size of Castings 1,500 mm × 1000 mm × 500 mm 1,000 mm × 800 mm × 500 mm
Casting Weight Range 0.5 kg - 1,000 kg 0.5 kg - 500 kg
Annual Capacity 5,000 tons - 6,000 tons 8,000 tons - 10,000 tons
Casting Tolerance On Request or Standard (ISO8062-2013 or GB/T 6414-1999)
Molding Materials Green Sand, Resin Coated Sand
Casting Metal & Alloys Gray Iron, Ductile Iron, Cast Steel, Stainless Steel, Al Alloys, Brass, Bronze...etc.


Metal & Alloys Grade for Sand Casting Processes

Metal & Alloys Popular Grade
Gray Cast Iron GG10~GG40; GJL-100 ~ GJL-350;
Ductile (Nodualar) Cast Iron GGG40 ~ GGG80; GJS-400-18, GJS-40-15, GJS-450-10, GJS-500-7, GJS-600-3, GJS-700-2, GJS-800-2
Austempered Ductile Iron (ADI) EN-GJS-800-8, EN-GJS-1000-5, EN-GJS-1200-2
Carbon Steel C20, C25, C30, C45
Alloy Steel
20Mn, 45Mn, ZG20Cr, 40Cr, 20Mn5, 16CrMo4, 42CrMo,
40CrV, 20CrNiMo, GCr15, 9Mn2V
Stainless Steel Ferritic Stainless Steel, Martensitic Stainless Steel, Austenitic Stainless Steel, Precipitation Hardening Stainless Steel, Duplex Stainless Steel
Aluminium Alloys ASTM A356, ASTM A413, ASTM A360
Brass / Copper-based Alloys C21000, C23000, C27000, C34500, C37710, C86500, C87600, C87400, C87800, C52100, C51100
Standard: ASTM, SAE, AISI, GOST, DIN, EN, ISO, and GB

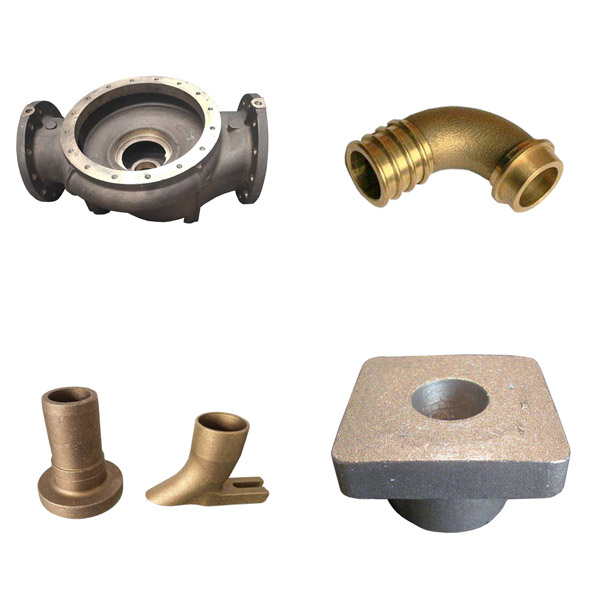

Brass Sand Castings
