Metal Grades for Shell Mold Casting Foundry

Metal & Alloys Equivalent Grade
Gray Cast Iron GG10~GG40; GJL-100 ~ GJL-350;
Ductile (Nodualar) Cast Iron GGG40 ~ GGG80; GJS-400-18, GJS-40-15, GJS-450-10, GJS-500-7, GJS-600-3, GJS-700-2, GJS-800-2
Austempered Ductile Iron (ADI) EN-GJS-800-8, EN-GJS-1000-5, EN-GJS-1200-2
Carbon Steel C20, C25, C30, C45
Alloy Steel 20Mn, 45Mn, ZG20Cr, 40Cr,   20Mn5, 16CrMo4, 42CrMo, 40CrV, 20CrNiMo, GCr15, 9Mn2V
Stainless Steel Ferritic Stainless Steel, Martensitic Stainless Steel, Austenitic Stainless Steel, Precipitation Hardening Stainless Steel, Duplex Stainless Steel
Aluminium Alloys ASTM A356, ASTM A413,  ASTM A360
Brass / Copper-based Alloys C21000, C23000, C27000, C34500, C37710, C86500,  C87600, C87400, C87800,  C52100, C51100
Standard: ASTM, SAE, AISI, GOST, DIN, EN, ISO, and GB



Shell molding casting process is also called pre-coated resin sand casting process, hot shell molding castings or core casting process. The main molding material is the pre-coated phenolic resin sand, which is more expensive than green sand and furan resin sand. Moreover, this sand can not be recycle used. The shell molding iron casting parts have higher costs than sand casting. However, the shell molding casting parts have many advantages such as tighter dimensional tolerance, good surface quality and less casting defects.



The following equipment are mainly used for the shell mould casting process, which include:  Make Metal Patterns → Making Pre-coated Sand Mold → Melting Iron → Pouring Metal → Shot Blasting

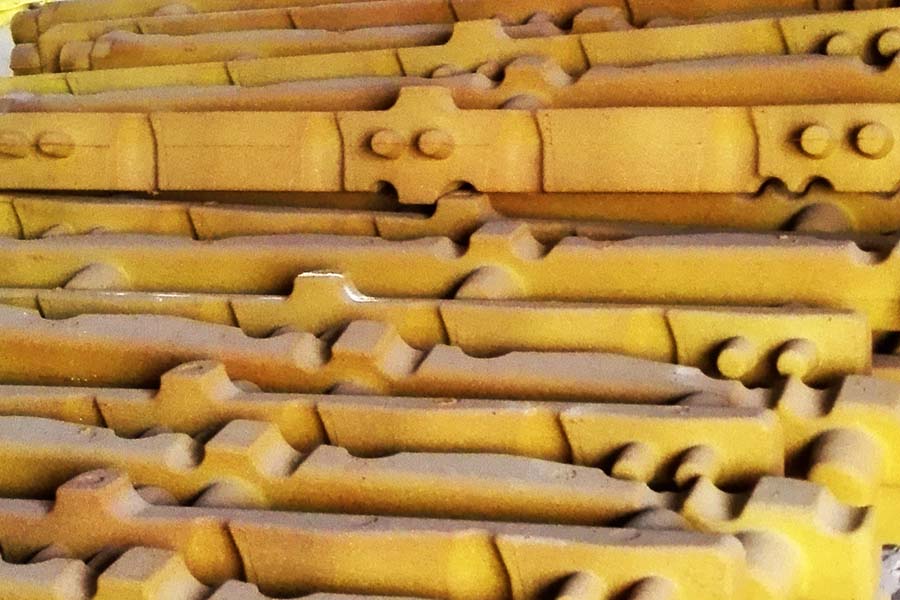

Pre-Coated Sand MoldPre-Coated Sand Mold

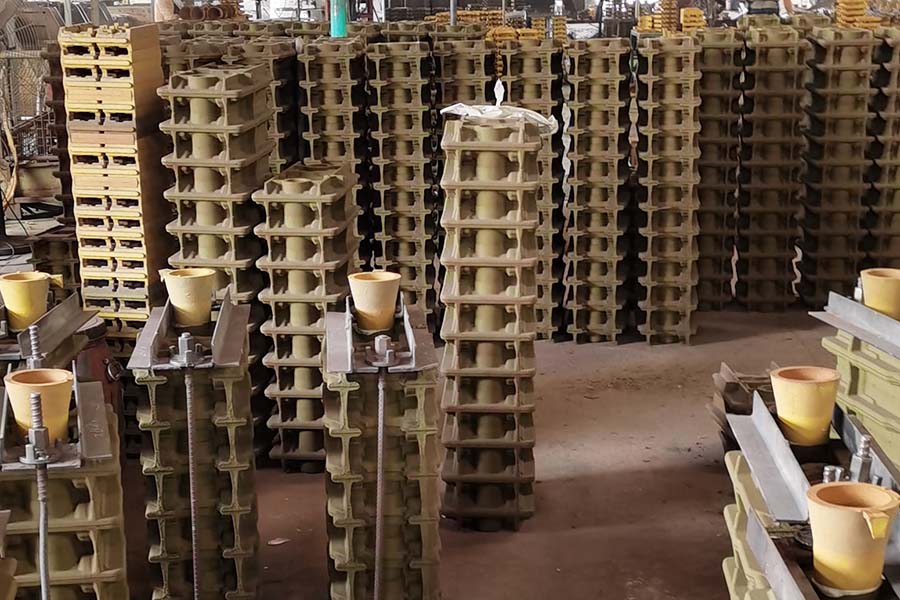

Pre-Coated Sand MoldPre-Coated Sand Mold

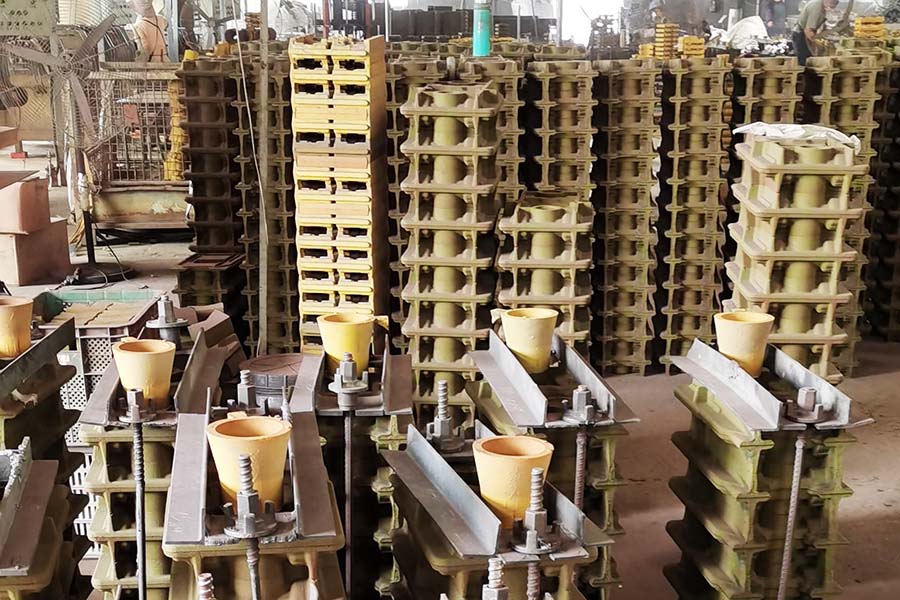

Shell Mold MakingShell Mold Making

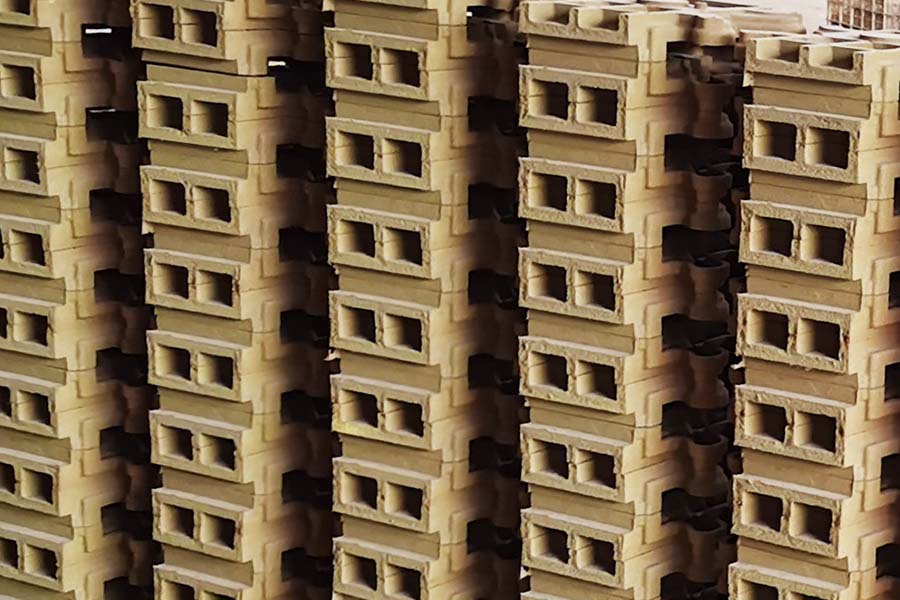

shell mould making for cast ironShell Mold Making

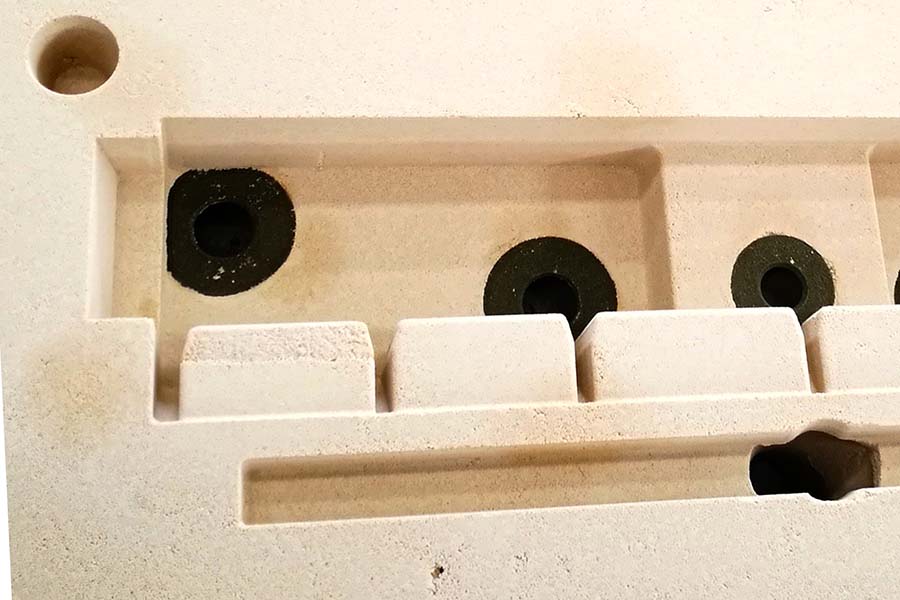

shell mould castingShell Mold Making

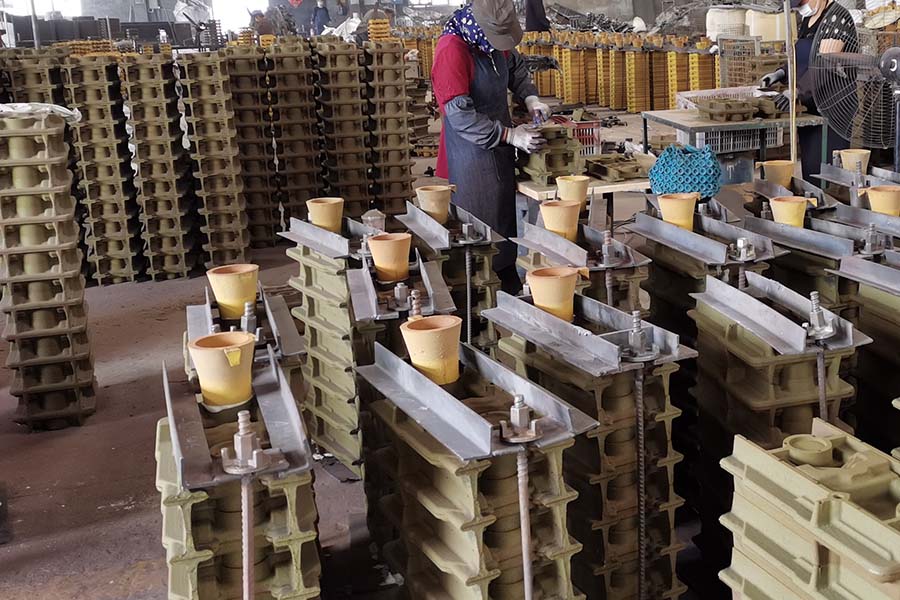

cast iron shell mould castingShell Mold Making

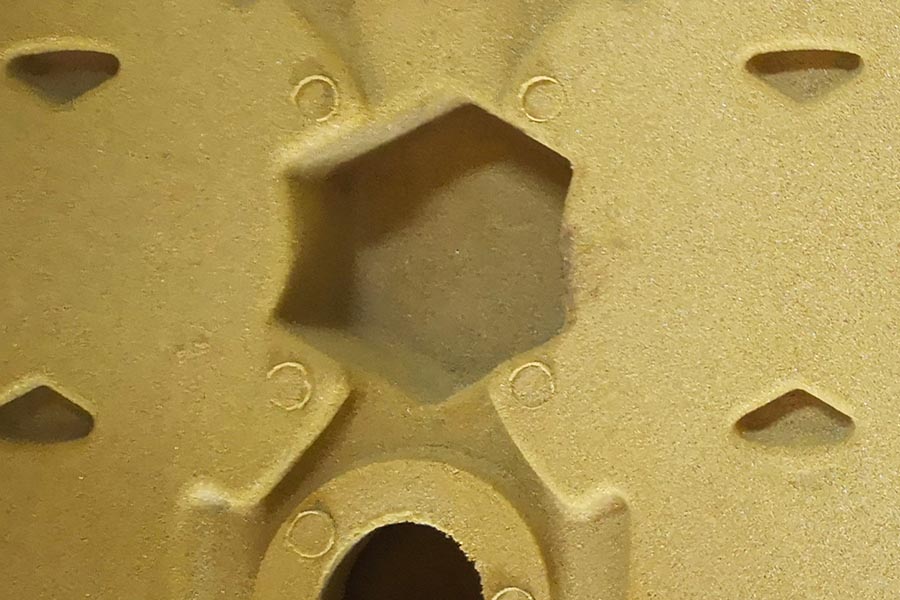

iron casting foundryShell Mold Making

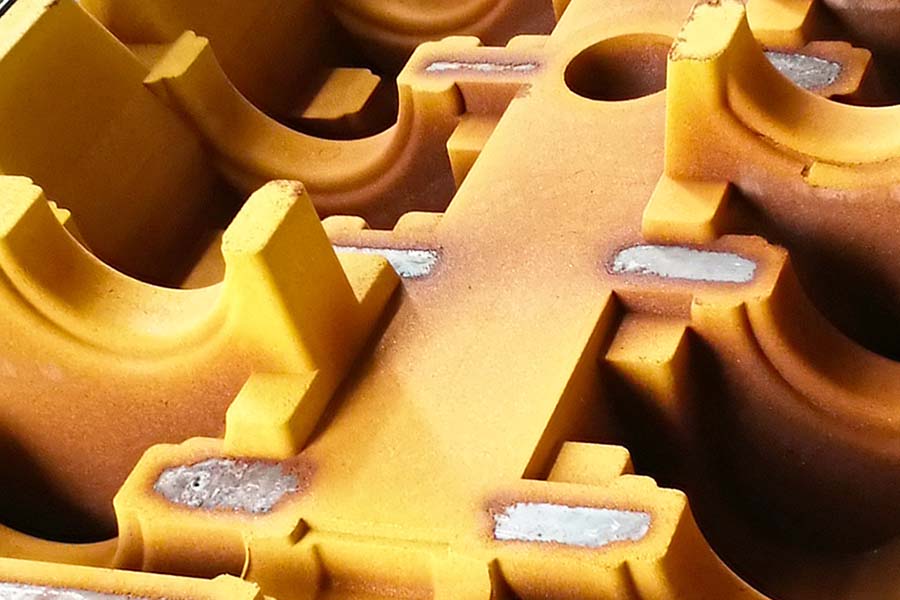

shell mould casting foundryShell Mold Making
